Tektronix VM700A opt;s 01 / 30 / 40 (reduced )

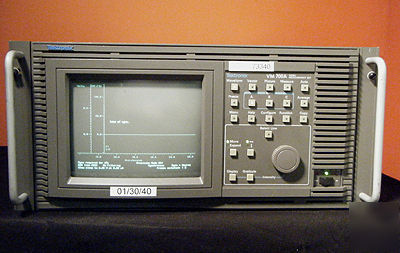

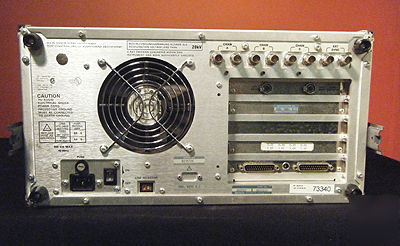

Tektronix VM700A Automatic Video Measurement Set with Options 01/ /30 /40
Option 30 = Component Measurement
Many Capabilities In One Instrument
* Group delay and frequency response
* Hardcopy via standard RS232 interface
* Unattended monitoring of NTSC video signals from studios, STLs, Earth Stations, and transmitters
Measure Mode Provides Graphic Display Of Measurements
* Differential gain and phase
* Chrominance to luminance delay
* Group delay with (sin x)/x
* Relative to reference on most measurements
* Configurable for all standard test signals
* Averaging on all measurement modes
* Picture mode for source ID
Characteristics Horizontal Interval Timing Measurements
* Horizontal Sync Rise Time and Fall Time
* Color Bar Chrominance-Luminance Gain Ratio
* Burst Frequency (Requires a reference signal.)
* Chrominance To Luminance Gain And Delay
* Chrominance Frequency Response
* SMPTE Color Bars Nominal Values
* Frequency Response And Group Delay
* Incidental Carrier Phase Modulation
* Multiburst (Total Harmonic Distortion on packets must be * RS-170A Horizontal Blanking Interval Timing Measurements
* RS-170A Vertical Blanking Interval
* FCC Horizontal Blanking Interval Timing Measurements
* FCC Vertical Blanking Interval Timing Measurements
* Amplitude And Phase Measurements
* Frequency Response Measurements
* Out-Of-Service Measurements
* Waveform Distortion Measurements
* Signal-To-Noise Ratio Measurements
